Lithium Ion Batteries Vibration Test Systems Combined with Climatic Chambers

Ask Lasest Price
Brand Name :	PRECISION
Model Number :	VTHC-225
Certification :	ISO
Price :	$6000
Payment Terms :	T/T
Supply Ability :	10/month
Delivery Time :	45 working days

Add to Cart

Product Details
Company Profile

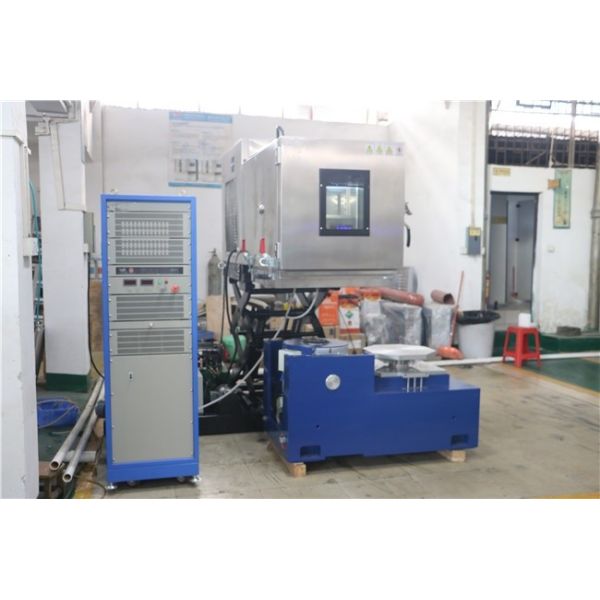

Lithium Ion Batteries Vibration Test Systems Combined with Climatic Chambers

Vibration Test Systems Combined with Climatic Chambers for Lithium-Ion Batteries

Product Description:

Our integrated vibration test systems and climatic chambers are specifically designed for the rigorous testing of lithium-ion batteries. This comprehensive system combines precise temperature and humidity control with powerful vibration capabilities, allowing for the simulation of real-world environmental and mechanical stresses that lithium-ion batteries may encounter. This ensures the safety, reliability, and performance of batteries used in electric vehicles, consumer electronics, and energy storage systems.

Key Features:

Integrated Testing: Combines climatic chambers for temperature and humidity control with vibration testing systems.
Precise Environmental Control: Advanced climate chamber technology allows for accurate and stable temperature and humidity control.
Robust Vibration Capabilities: High-performance vibration systems capable of simulating a wide range of vibration profiles.
Safety Features: Equipped with multiple safety features to protect both the testing equipment and the batteries being tested.
Customizable Solutions: Systems can be customized to meet specific testing requirements and industry standards.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Lithium Ion Batteries Vibration Test Systems Combined with Climatic Chambers

Applications:

Lithium-ion battery reliability testing
Environmental stress screening (ESS)
Product qualification testing
Research and development
Quality control

Benefits:

Ensures battery safety and reliability

Accelerates product development cycles
Improves battery performance
Reduces testing costs
Meets industry standards

Why Choose Us:

We provide cutting-edge lithium-ion battery testing solutions, with expert engineers, and the highest product quality. We are dedicated to providing the best possible testing solutions for your battery testing needs.

Contact Us:

For more information about our vibration test systems combined with climatic chambers for lithium-ion batteries, please contact us today. We are committed to providing you with the best possible testing solutions.
