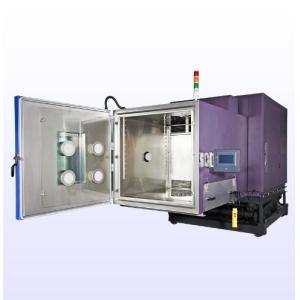

    Robust Construction Vibration Test Chamber AGREE with Electrodynamic Shaker System

    Ask Lasest Price
    Brand Name : PRECISION
    Model Number : VTHC-225
    Certification : ISO
    Price : $6000
    Payment Terms : T/T
    Supply Ability : 10/month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Robust Construction Vibration Test Chamber AGREE with Electrodynamic Shaker System

    AGREE Vibration Test Chamber with Electrodynamic Shaker System


    Product Description:


    Our AGREE Vibration Test Chamber, equipped with an advanced Electrodynamic Shaker System, is engineered to meet the stringent requirements of AGREE (Advisory Group on Reliability of Electronic Equipment) testing standards. This sophisticated system combines precise temperature and humidity control with a powerful electrodynamic shaker, enabling the simulation of complex environmental and mechanical stresses. This ensures the reliability and durability of your products under extreme conditions.


    Key Features:

    • AGREE Standard Compliance: Designed to meet or exceed AGREE testing standards.
    • Electrodynamic Shaker System: Equipped with a high-performance electrodynamic shaker for precise and repeatable vibration generation.
    • Precise Environmental Control: Advanced control systems maintain accurate and uniform temperature and humidity conditions.
    • Customizable Vibration Profiles: Programmable vibration profiles allow for precise simulation of various vibration environments.
    • Data Acquisition and Analysis: Integrated data acquisition systems for real-time monitoring and comprehensive data analysis.
    • Robust Construction: Durable construction ensures reliable performance under demanding testing conditions.

    3. Specific Parameters

    Shaker Specifications


    Rated Sine/ Random/ Shock Force1,100 kgf/1,100 kgf/2.200 kgfArmature Mass11kg
    Frequency Range5-3.000 HzInserts Size (Standard)M8
    Max./Continuous Displacement p-p51 mm/ 51 mmLoad Attachment Points (Standard)17
    Max. Velocity2.0 m/sNatural Frequency-Thrust Axis<3Hz
    Max.Sine/ Random Acceleration100/60gMac Vertical Load Support300 kg
    Armature Diameter235 mmStray field @ 152 mm above table≤1mT (10 gauss)
    Fundamental Resonance frequency2,500 Hz (nom.) ± 5%Dimension LxWxH940 mmx715 mmx780 mm
    Allowable Armature Overturning Moment300 NmWeight (Uncrated)1.000 kg

    PA10K Power Amplifier SpecificationsBlower Specifications
    Rated Output Capacity10kVABl ewer Power4kW
    Signal to Noise Ratio≥65 dBAir Flow0.38 m3/s
    Amplifier Efficiency≥90%Air Pressure0 048kgf/cm2
    System ProtectionMultipleAir Duct Diameter/ Length120/4000mm
    Dimension (Uncrated) LxWxH610mmx900mmx 1,550mmDimension (Uncrated) LxWxH610mmx750mmx 1,450mm
    Weight (Uncrated)400 kgWeight (Uncrated)120Kg

    ChamberDimensions (mm)
    Capacity512L
    Inner Chamber Dimensions800×800×800mm (W width × D depth × H height mm)
    Temperature Range-40℃~+150℃
    Cooling Rate

    +20℃~-40℃ Average throughout the range: 2℃/min


    Humidity Range20%RH~98%RH
    Overall Dimensions

    1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions


    Weight1500kg

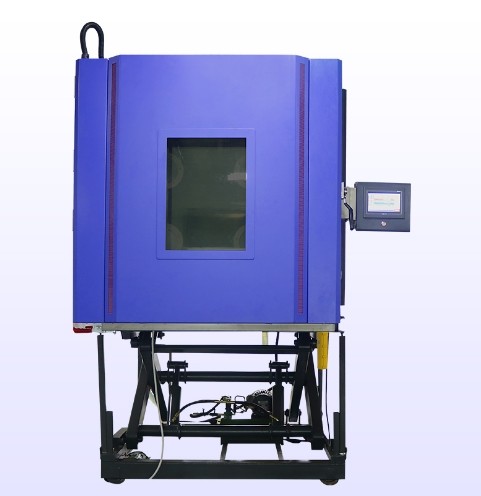

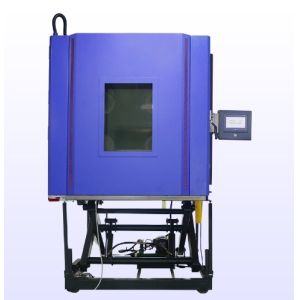

    Robust Construction Vibration Test Chamber AGREE with Electrodynamic Shaker SystemRobust Construction Vibration Test Chamber AGREE with Electrodynamic Shaker System

    Applications:

    • Environmental Stress Screening (ESS)
    • Reliability Testing
    • Product Qualification Testing
    • Aerospace and Defense Testing
    • Automotive Component Testing
    • Electronics Reliability Testing

    Benefits:

    • Enhanced Product Reliability
    • Accelerated Product Development Cycles
    • Improved Quality Control
    • Reduced Testing Time and Costs
    • Increased Testing Flexibility

    Why Choose Us:

    We specialize in providing high-quality environmental testing solutions tailored to meet the specific needs of our customers. Our AGREE Vibration Test Chambers with Electrodynamic Shaker Systems are designed and manufactured to the highest standards, ensuring reliable and accurate testing results.


    Contact Us:

    For more information about our AGREE Vibration Test Chamber with Electrodynamic Shaker System, please contact us today. We are committed to providing you with the best possible testing solutions.
