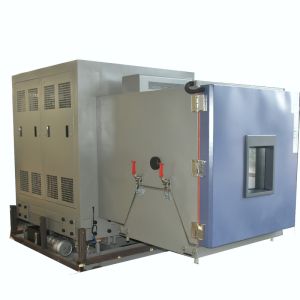

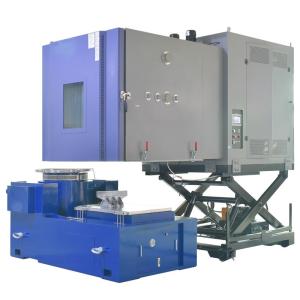

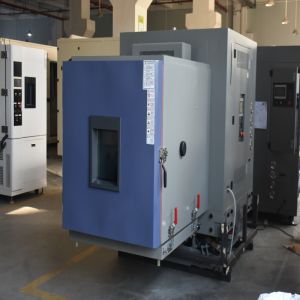

AGREE Environmental Chambers with Integrated Vibration & Lifting Test Spaces

Ask Lasest Price
Brand Name :	PRECISION
Model Number :	VTHC-225
Certification :	ISO
Price :	$6000
Payment Terms :	T/T
Supply Ability :	10/month
Delivery Time :	45 working days

Add to Cart

Product Details
Company Profile

AGREE Environmental Chambers with Integrated Vibration & Lifting Test Spaces

Product Description:

Our AGREE-compliant environmental chambers, featuring integrated vibration testing and lifting test spaces, are engineered to provide comprehensive and efficient environmental testing solutions. These chambers combine precise temperature and humidity control with robust vibration capabilities, alongside a convenient lifting system for handling large or heavy test specimens. This integrated approach streamlines testing processes, reduces handling risks, and ensures accurate and repeatable results in accordance with stringent AGREE testing standards.

Key Features:

AGREE Compliance: Designed to meet or exceed rigorous AGREE testing standards.
Integrated Vibration Testing: High-performance electrodynamic or hydraulic shakers for precise vibration simulation.
Lifting Test Space: Equipped with an electric or hydraulic lifting platform for easy loading and positioning of heavy or large test items.
Precise Environmental Control: Advanced temperature and humidity systems for stable and uniform testing conditions.
Customizable Vibration Profiles: Flexible software for creating complex and customized vibration profiles.
Real-Time Data Acquisition: Comprehensive data logging and analysis capabilities.
Robust Safety Features: Multiple safety interlocks and monitoring systems for secure testing.
Modular Design: Facilitates easy installation, maintenance, and system upgrades.

3. Specific Parameters

Electrodynamic Vibration Shaker Parameters
- Rated Sine Force 300kgf- 8000kg.f
  Frequency Range DC-3000Hz
  Max. Displacement p-p 51-100mm
  Max acceleration 100g
  Max. Velocity (m/s) 2.0
  Max. Payload 300-5000kg

Climate Test Chamber Parameters

Model	CTHC-80	CTHC-150	CTHC-225	CTHC-408	CTHC-800	CTHC-1000
Inside dimension(W x D x H) cm	40 x 50 x40	50 x 60 x 50	50 x 75 x 60	60 x 85 x 80	100 x 100 x 80	100 x 100 x 100
Outside dimension(W x D x H) cm	95 x 140 x 95	105 x 150 x 105	105 x 165 x 115	115 x 175 x 140	155 x 190 x 140	155 x 190 x 160
Internal material	#304 Stainless Steel
External material	Powder coated #304 Stainless Steel
Temperature range	+ 150℃~ - 70 ℃
Humidity range	10% ~ 98% R. H
Temperature Uniformity ℃	0.01
Humidity Uniformity % R. H.	0.1
Temperature stability ℃	±0.3
Humidity stability % R. H.	±2
High temperature ℃	100	100	100	100	100	100
Heating time (min)	20	30	30	30	30	30
Low temperature	0, -40, -70	0, -40, -70	0, -40, -70	0, -40, -70	0, -40, -70	0, -40, -70
Cooling time (min)	20, 50, 70	20, 50, 70	20, 50, 70	20, 50, 70	20, 50, 70	20, 50, 70
Air circulation system	Mechanical convection system
Cooling system	Imported compressor, fin evaporator, gas condenser
Heating system	Sus304 Stainless steel High-speed heater
Humidification system	Steam Generator
Humidification water supply	Reservoir, Sensor-controller solenoid valve, recovery-recycle system
Controller	Touch panel
Electrical power requirements	Please contact us for requirements of specific models
Accessories	Multi-layer enhanced glass window,test hole, action indicator light, case lighting barrier shelf x2
Safety device	Circuit system load protection, compressor load protection, control system load protection, humidifier load protection, overtemperature load protection, fault warning light

Applications:

Aerospace equipment testing
Military hardware testing
Automotive component testing
Large electronic equipment testing
Environmental stress screening (ESS)
Reliability testing

Benefits:

Simplified handling of large or heavy test specimens.
Increased testing efficiency and reduced operational risks.
Compliance with stringent military and aerospace standards.
Improved product reliability and performance in harsh environments.
Comprehensive and integrated testing solutions.

AGREE Environmental Chambers with Integrated Vibration & Lifting Test Spaces

Why Choose Us:

We are a leading provider of high-quality environmental testing solutions, with extensive experience in the aerospace, military, automotive, and electronics industries. Our AGREE chambers with lifting test spaces are designed to deliver exceptional performance and reliability.

Contact our expert team today to discuss your specific testing requirements and discover how our integrated AGREE chamber solutions can optimize your testing processes.
