Three Position Comprehensive Environmental Testing Chamber For Aerospace Components

Ask Lasest Price
Brand Name :	PRECISION
Model Number :	VTHC-225
Certification :	ISO
Price :	$6000
Payment Terms :	T/T
Supply Ability :	10/month
Delivery Time :	45 working days

Add to Cart

Product Details
Company Profile

Three Position Comprehensive Environmental Testing Chamber For Aerospace Components

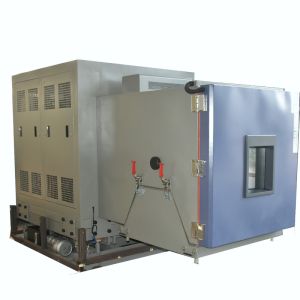

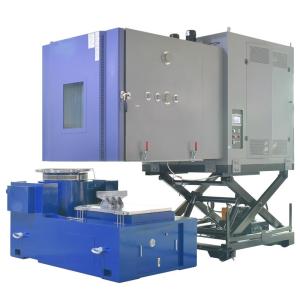

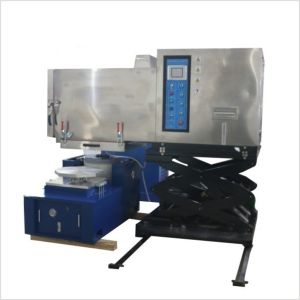

Three-Position Combined Environment Chambers for Aerospace Components

Product Description:

Our Three-Position Combined Environment Chambers are designed to provide comprehensive environmental testing for aerospace components, ensuring their reliability and performance under extreme conditions. These chambers integrate temperature, humidity, and vibration testing capabilities, offering a one-stop solution for aerospace manufacturers and testing laboratories.

Key Features:

Three-in-One Testing:
- Simultaneous temperature, humidity, and vibration testing capabilities.
- Reduces testing time and costs by combining multiple tests into a single process.
Precise Environmental Control:
- Accurate and stable temperature control ranging from -70°C to +180°C.
- Humidity control from 10% to 98% RH.
- Vibration testing with customizable frequency and amplitude.
Customizable Configurations:
- Available in various sizes and configurations to meet specific testing requirements.
- Customizable fixtures and accessories for different aerospace components.
Advanced Control System:
- User-friendly interface with programmable logic controller (PLC).
- Data logging and real-time monitoring capabilities.
- Remote control and monitoring options.
Compliance and Standards:
- Meets industry standards such as MIL-STD-810, RTCA DO-160, and IEC 60068.
- Ensures accurate and reliable testing results.
Robust Construction:
- High-quality materials and construction for long-lasting performance.
- Reliable and durable components for continuous operation.
Safety Features:
- Over-temperature protection.
- Overload protection.
- Emergency stop functions.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications:

Aerospace component qualification testing
Environmental stress screening (ESS)
Reliability testing
Research and development
Quality assurance

Benefits:

Increased testing efficiency
Reduced testing time and costs
Improved product reliability
Enhanced quality control
Streamlined testing processes

Why Choose Us:

We are a leading provider of environmental testing solutions, with a proven track record of delivering high-quality, reliable, and innovative products. Our team of experienced engineers and technicians is dedicated to providing exceptional customer service and support, ensuring that you get the right solution for your specific testing needs.

Contact Us:

For more information about our Three-Position Combined Environment Chambers for Aerospace Components, please contact us today. We are happy to answer any questions you may have and provide you with a customized solution that meets your specific testing requirements.
