Customizable ESS Environmental Stress Screening Chambers with Vibration Shaker Systems

Ask Lasest Price
Brand Name :	PRECISION
Model Number :	THV-20
Certification :	ISO
Price :	$2000
Payment Terms :	T/T
Supply Ability :	20/month
Delivery Time :	45 working days

Add to Cart

Product Details
Company Profile

Customizable ESS Environmental Stress Screening Chambers with Vibration Shaker Systems

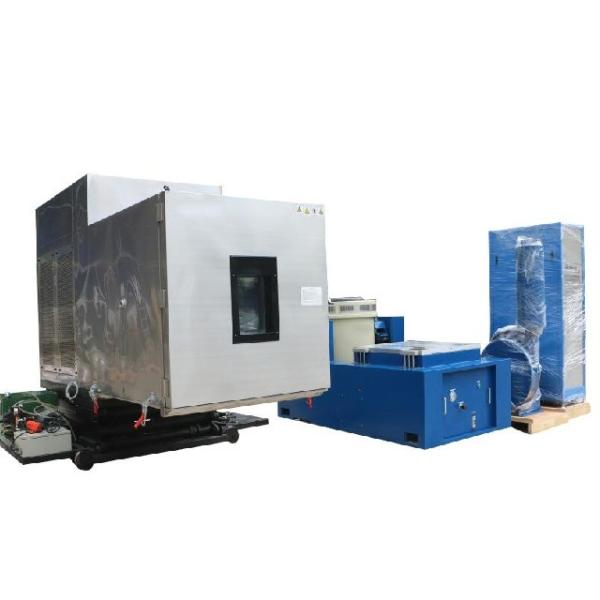

Environmental Stress Screening (ESS) Chambers with Vibration Shaker Systems

Product Description:

Our Environmental Stress Screening (ESS) Chambers, equipped with integrated vibration shaker systems, are designed to accelerate the identification and elimination of product defects. These chambers combine precise temperature, humidity, and vibration control to expose latent failures in electronic and mechanical components, ensuring product reliability and reducing costly field failures.

Key Features:

Environmental Stress Screening (ESS) Capabilities:
- Designed for accelerated stress testing to identify manufacturing defects and design flaws.
- Reduces early product failures and improves overall product reliability.
Integrated Vibration Shaker Systems:
- High-performance vibration shakers to simulate various vibration profiles.
- Adjustable frequency, amplitude, and duration to match specific ESS requirements.
Precise Temperature and Humidity Control:
- Advanced control systems for stable and accurate environmental conditions.
- Wide temperature and humidity ranges to simulate diverse operating environments.
Customizable Chamber Sizes:
- Tailored to accommodate various product sizes and configurations.
- Ensures efficient testing of diverse product types.
Data Acquisition and Analysis:
- Comprehensive data logging and analysis software for detailed test results.
- Real-time monitoring of test parameters for immediate feedback.
User-Friendly Interface:
- Intuitive software and control panels for easy operation and test setup.
- Programmable test sequences for automated testing.
Safety Features:
- Built-in safety mechanisms to protect test specimens and operators.
- Emergency stop functions for immediate shutdown.
Compliance with Industry Standards:
- Meets or exceeds relevant industry standards, including MIL-STD-810 and IEC 60068.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications:

Environmental stress screening of electronic components and assemblies.
Reliability testing of mechanical components and systems.
Manufacturing process quality control.
Product development and design validation.
Aerospace and automotive component testing.

Benefits:

Improved product reliability and reduced field failures.
Accelerated product development and manufacturing cycles.
Reduced warranty costs and customer dissatisfaction.
Enhanced product quality and brand reputation.
Compliance with industry standards and customer requirements.

Customizable ESS Environmental Stress Screening Chambers with Vibration Shaker Systems

Applications:

Environmental stress screening of electronic components and assemblies.
Reliability testing of mechanical components and systems.
Manufacturing process quality control.
Product development and design validation.
Aerospace and automotive component testing.

Benefits:

Improved product reliability and reduced field failures.
Accelerated product development and manufacturing cycles.
Reduced warranty costs and customer dissatisfaction.
Enhanced product quality and brand reputation.
Compliance with industry standards and customer requirements.

Why Choose Us:

We are a leading provider of advanced environmental testing solutions, specializing in ESS chambers with integrated vibration shaker systems. Our expertise and commitment to quality ensure reliable and accurate results.
